Monroe® RideRefine™ RC1 add-on valve utilizes frequency dependent damping to smooth out high-frequency wheel motions. This add-on valve is highly tunable, enabling vehicle manufacturers to select the ideal comfort profile for short piston strokes in each vehicle model.

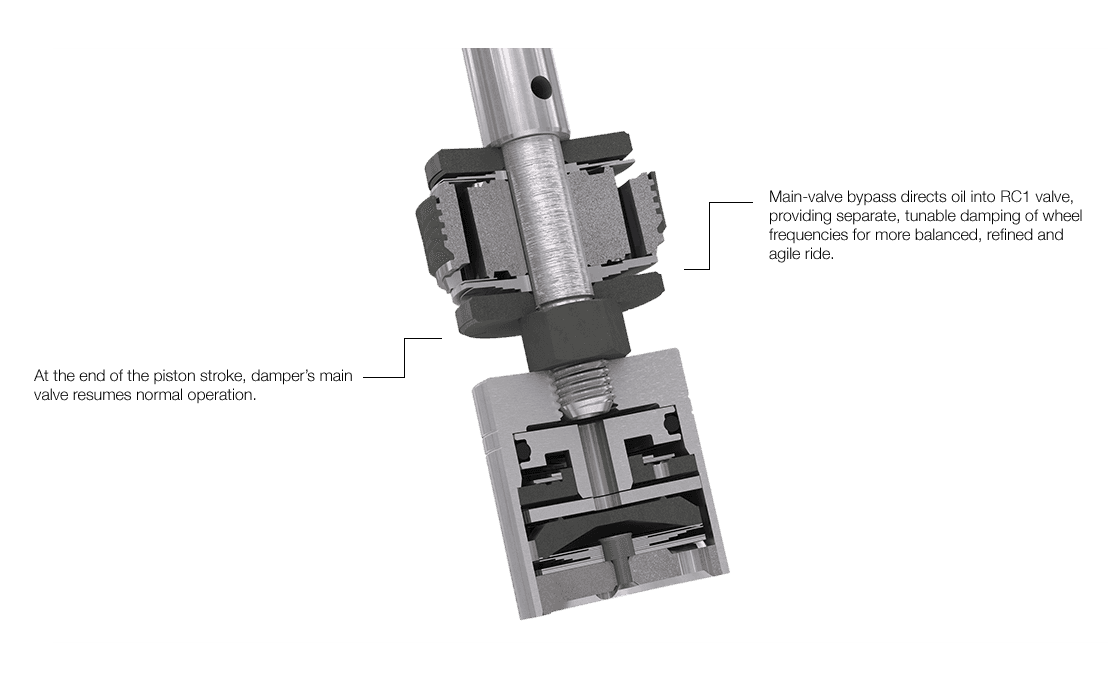

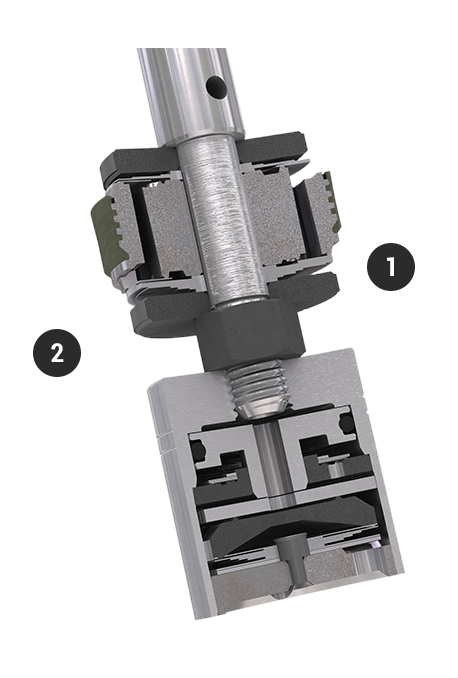

- 1 Main-valve bypass directs oil into RC1 valve, providing separate, tunable damping of wheel frequencies for more balanced, refined and agile ride.
- 2 At the end of the piston stroke, damper’s main valve resumes normal operation.
Examples of vehicles equipped with RC1:
- Jaguar XF
- Jeep Compass
- Jeep Wrangler
- AMG G 500
- Ford Fiesta ST
- Volvo Polestar 2
